Installation

Install arpwatch

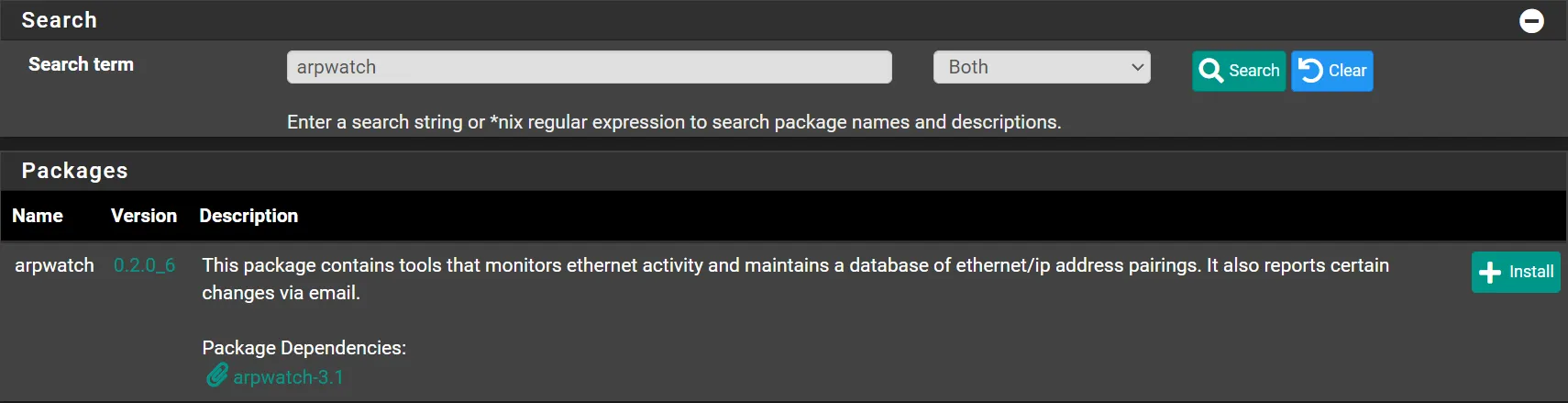

Navigate to System -> Package Manager -> Available Packages

Search for aprwatch and click ➕Install

Click ✔️Confirm

Wait until you see Success

>>> Installing pfSense-pkg-arpwatch...
Updating pfSense-core repository catalogue...
pfSense-core repository is up to date.
Updating pfSense repository catalogue...
pfSense repository is up to date.
All repositories are up to date.
The following 3 package(s) will be affected (of 0 checked):

New packages to be INSTALLED:
  arpwatch: 3.1 [pfSense]
  libpcap: 1.10.1_2 [pfSense]
  pfSense-pkg-arpwatch: 0.2.0_6 [pfSense]

Number of packages to be installed: 3

The process will require 1 MiB more space.
322 KiB to be downloaded.
[1/3] Fetching pfSense-pkg-arpwatch-0.2.0_6.pkg: .. done
[2/3] Fetching arpwatch-3.1.pkg: .... done
[3/3] Fetching libpcap-1.10.1_2.pkg: .......... done
Checking integrity... done (0 conflicting)
[1/3] Installing libpcap-1.10.1_2...
[1/3] Extracting libpcap-1.10.1_2: .......... done
[2/3] Installing arpwatch-3.1...
[2/3] Extracting arpwatch-3.1: .......... done
[3/3] Installing pfSense-pkg-arpwatch-0.2.0_6...
[3/3] Extracting pfSense-pkg-arpwatch-0.2.0_6: ......... done
Saving updated package information...
done.
Loading package configuration... done.
Configuring package components...
Loading package instructions...
Custom commands...
Executing custom_php_install_command()...done.
Executing custom_php_resync_config_command()...done.
Menu items... done.
Services... done.
Writing configuration... done.
=====
Message from arpwatch-3.1:

--
You can create an ethercodes.dat file by running this script:

    /usr/local/arpwatch/update-ethercodes

Here's a example crontab entry to update it every night:

    00 0 * * * root sleep `jot -r 1 0 600` ; /usr/local/arpwatch/update-ethercodes

The -m flag is deprecated. If you are using the -m watcher flag,
please switch to -w.
>>> Cleaning up cache... done.
Success

As you can see the output shows an example of how to automatically update the ethercodes. This file contains the mappings between mac address and vendors.

You can skip both Install Cron and Setup Cron if you do not want it to update automatically. You can do it manual, by checking Updates the ethernet vendor database and clicking 💾Save

Install Cron

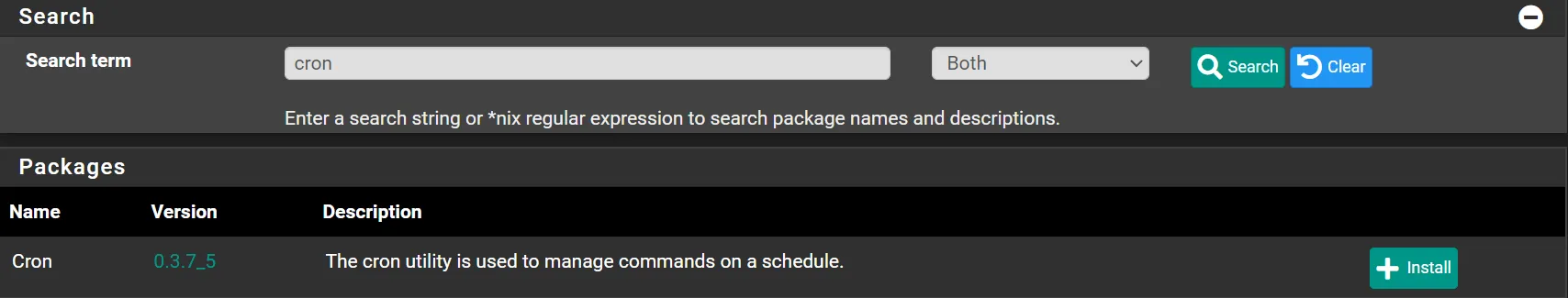

Navigate to System -> Package Manager -> Available Packages

Search for cron and click ➕Install

Click ✔️Confirm

Wait until you see Success

>>> Installing pfSense-pkg-Cron...
Updating pfSense-core repository catalogue...
pfSense-core repository is up to date.
Updating pfSense repository catalogue...
pfSense repository is up to date.
All repositories are up to date.
The following 1 package(s) will be affected (of 0 checked):

New packages to be INSTALLED:
  pfSense-pkg-Cron: 0.3.7_5 [pfSense]

Number of packages to be installed: 1

7 KiB to be downloaded.
[1/1] Fetching pfSense-pkg-Cron-0.3.7_5.pkg: . done
Checking integrity... done (0 conflicting)
[1/1] Installing pfSense-pkg-Cron-0.3.7_5...
[1/1] Extracting pfSense-pkg-Cron-0.3.7_5: .......... done
Saving updated package information...
done.
Loading package configuration... done.
Configuring package components...
Loading package instructions...
Custom commands...
Executing custom_php_resync_config_command()...done.
Menu items... done.
Writing configuration... done.
>>> Cleaning up cache... done.
Success
