Firewall & NAT

When you want to reach a service hosted in the same network via it’s FQDN, you have to either user Split DNS or enable NAT Reflection (also known as NAT Hairpinning).

Without this, you won’t be able to reach it at all, or you can reach it but all the traffic goes out to the internet and get back in.

Split DNS is the preferred method, so that the firewall is not involved when using internal services, but requires an entry for each service.

Split DNS

• Setup Unbound DNS
• (Optional) Setup Force DNS Redirection

Tip

Make sure your clients are using the OPNsense as their DNS server.

Navigate to Services -> Unbound DNS -> Overrides

• Click ➕ to add a new override
• Host: myservice
• Domain: example.com
• Type: A
• IP Address: 10.10.10.150 (Internal IP of the service)
• Description: My Service
• Click Save

Do the above for each service you want to reach via it’s FQDN.

Now all the clients in your network will be able to reach myservice.example.com

Tip

You might need to restart the Unbound DNS Service for the changes to take effect.

NAT Reflection

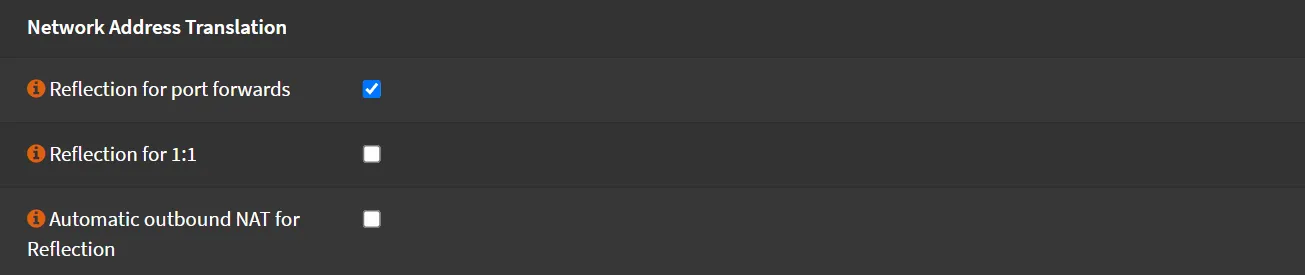

Navigate to Firewall -> Settings -> Advanced

• Check Reflection for port forwards

• Click Save
